Superior Technology:

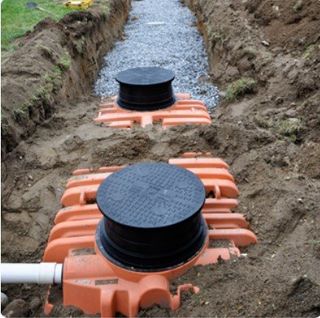

Chambers: A solid top prevents infiltration of rainwater and the intrusion of fines and sidewall louvers allow lateral leaching and evapotransporation . Open bottom provides unobstructed soil interface, allowing up to 50% reduction in trench length. Infiltrator
offers a full line of plastic leachfield
chamber products, tanks, risers and
accessories for use in septic systems. We have an extensive network of distributors throughout North America and Europe who maintain inventories of our products and also provide contractors and installers with product delivery and installation support.
All products carry a limited warranty and are certified to the International Association of Plumbing and Mechanical Officials (IAPMO) structural testing protocol.
Strong injection-molded polypropylene construction
• NSF/ANSI-61-certified for potable uses
• Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling
• Integral heavy-duty green lids that interconnect with TW™ risers and pipe riser solutions
• Structurally reinforced access ports eliminate distortion during installation and pump-outs
• Reinforced structural ribbing and fiberglass bulkheads offer additional strength
• Can be installed with 6" to 48" of cover
• Can be pumped dry
• Suitable for use as a potable
pump tank, rainwater harvesting tank or water storage tank
• No special water filling requirements are necessary
• The tank may be backfilled with suitable native soil. See installation instructions for guidance.
• Available in 552-gallon, 1287-gallon and 1787- gallon capacities
INFILTRATOR water technologies
Austin Septic Supply
INFILTRATOR:
Product PDF Page Link
products offer many benefits:
Ease of
Installation:

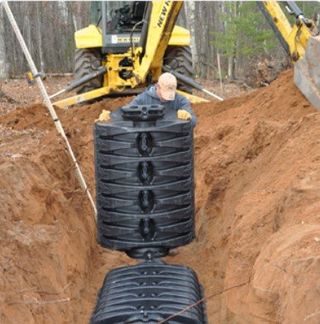

Chambers and tanks can be delivered to the site in a pickup truck and hand-carried into position. For most jobs, two people can install a system in less than half the time it takes for a comparable stone and pipe leachfield .
Cost Savings:
Our chambers interlock with an advanced design, connecting them end-to-end with a precise fit for curved or straight systems. Advanced contouring connections allow chambers to avoid obstacles.
Long-Term, Exceptional Strength and Durability
A revolutionary improvement in plastic septic tank design, the injection molded IM-540 offers exceptional long-term strength and is compatible with Infiltrator’s line of custom fit risers and heavy duty
lids.
Total Storage Volume: 552 gal
(2089 L)
Size: 64.9"L x 61.7"W x 54.6"H (1648 mm x 1567 mmx 1387 mm)
One access port: 24" (610 mm)
All IM-540 tanks are fully assembled and available through our network of certified Infiltrator distributors.
INFILTRATOR water technologies
Austin Septic Supply
No stone or geotextile is typically required, and chamber installations use less pipe. Installations are faster so you save on heavy equipment operation and eliminate the need for heavy trucks used to transport stone.
Less Site Disruption:
Since Infiltrator chambers typically occupy a smaller total area than stone and pipe leachfields ,
Redefining Strength: Lightweight, strong and durable
A revolutionary improvement in plastic septic tank design, the injection molded IM-1060 offers exceptional long-term strength and is compatible with Infiltrator’s line of custom fit risers and
heavy duty lids.

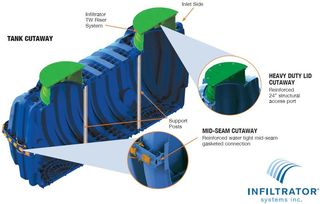

View tank cutaway.
IM1060Septic Tank Effective Volume: 1094 gal (4141 L)
Total Storage Volume: 1287 gal (4872 L)
Size: 127"L x 62.2"W x 54.7"H (3226 mm x 1580 mmx 1389 mm)
Two access ports: 24" (610 mm)
All IM-1060 tanks are fully assembled and available through our network of certified Infiltrator distributors.
Long-Term, Exceptional Strength and Durability
A revolutionary improvement in plastic septic tank design, the injection molded IM-1530 offers exceptional long-term strength and is compatible with Infiltrator’s line of custom fit risers and heavy duty
lids. Large capacity, lightweight, durable and watertight.
Septic Tank Effective Volume: 1537 gal (5818 L)
Total Storage Volume: 1765 gal (6681 L)
Size: 176"L x 62"W x 55"H (4460 mm x 1567 mmx 1384 mm)
All IM-1530 tanks are a two-piece design that efficiently nests for shipping and available through our network of certified Infiltrator distributors.
